GuiCommand: Name: TechDraw ExtensionPosObliqueChainDimension MenuLocation: TechDraw , Extensions: Attributes/Modifications , Position Oblique Chain Dimensions Workbenches: TechDraw_Workbench Shortcut: Version: 0.20 SeeAlso: TechDraw_ExtensionPosHorizChainDimension, TechDraw_ExtensionPosVertChainDimension

TechDraw ExtensionPosObliqueChainDimension

Description

The TechDraw ExtensionPosObliqueChainDimension tool aligns oblique dimensions to create a chain dimension.

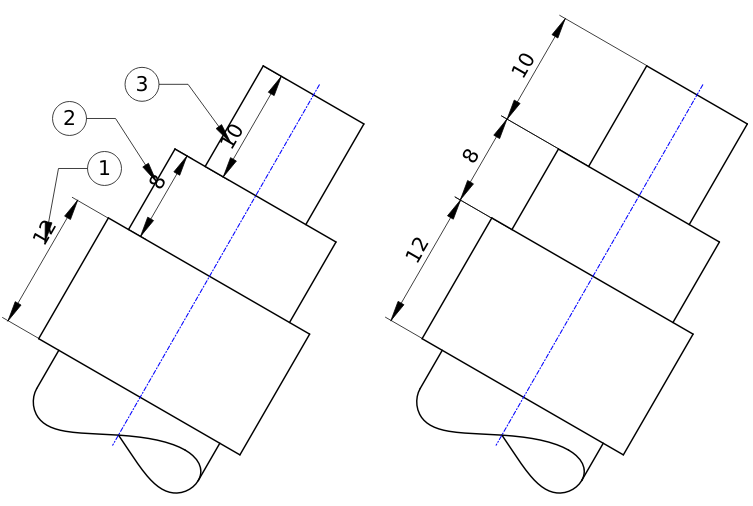

*On the right the aligned dimensions*

Usage

  1. Select two or more parallel oblique dimensions.
  2. The first dimension defines the position. This dimension will not be moved.
  3. There are several ways to invoke the tool:
    • Press the Position Oblique Chain Dimensions button.
    • Select the TechDraw → Extensions: Attributes/Modifications → Position Oblique Chain Dimensions option from the menu.
  4. The dimensions are aligned.

{{TechDraw_Tools_navi}}

⏵ documentation index > TechDraw > TechDraw ExtensionPosObliqueChainDimension

This page is retrieved from https://github.com/FreeCAD/FreeCAD-documentation/blob/main/wiki/TechDraw_ExtensionPosObliqueChainDimension.md
