OSE Piping Workbench
Introduction
OSE Piping Workbench creates pipes and fittings. It is a part of Open Source Ecology and Open Source Ecology Germany. To use all its features install the Dodo Workbench.
Customization
OSE Piping stores dimensions in CSV-files in the table directory in the workbench directory. Edit these CSV files if you want to add new or to change dimensions of the fitting.
Pipe
A pipe is described by its outer diameter OD, its wall thickness Thk and its height H.
To create a pipe, click
in OSE piping workbench. Select pipe dimensions and click \"OK\".
To add new dimensions adjust CSV pipe.csv file.
Wikipedia on Nominal Pipe Size (NPS).
Elbow

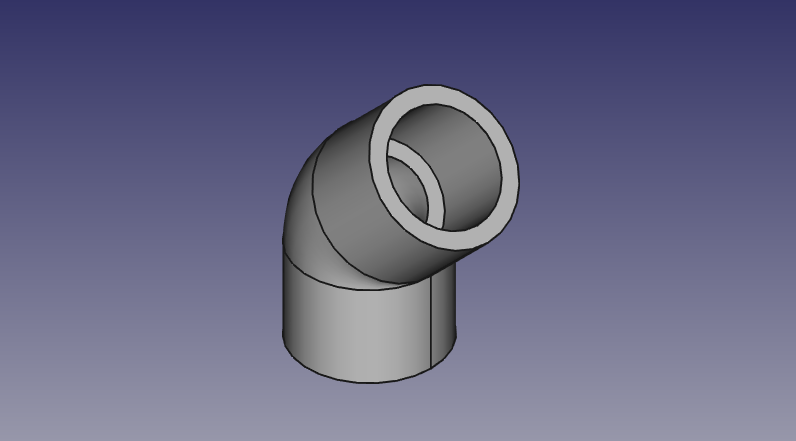

An elbow is described by an angle alpha, outer pipe diameter POD, inner pipe diameter PID, H, J, and M.
To create an elbow, click
.
 To add new elbows, adjust **elbow.csv** file.
Sweep Elbow

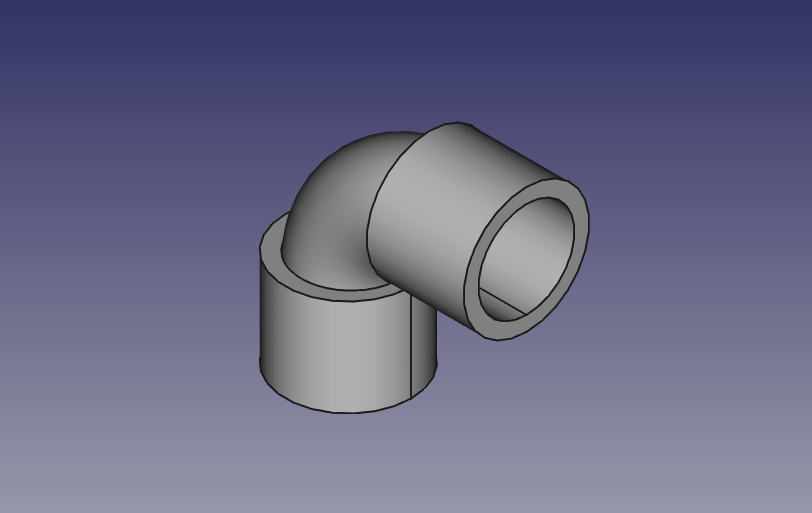

A sweep elbow is a special elbow with larger radius of the bent part. It is described by outer pipe diameter POD, pipe thickness PThk, G, H, and M. To create a sweep elbow, click
.
 To add new sweep elbows, adjust **sweep-elbow.csv** file.
